17.8m spider lift hire in Mandurah, with an operator
A 17.8 metre tracked spider lift that sets up on a driveway and reaches up and over the roof, supplied with one of our licensed operators.
- Comes with an operator
- Day and weekly rates
- Delivery across the Peel region
- 17.8mWorking height
- 9.3mMax outreach
- 230kgBasket capacity
- HybridPetrol or 230V
About the spider lift
The Ruthmann Bluelift SA18HB is a tracked spider lift with a working height of 17.8 metres and up to 9.3 metres of outreach. It is a hybrid, so it runs on petrol outdoors and on 230V power indoors, which is what lets it work in atriums, churches and halls where a conventional boom would not fit.
It goes out as an operated hire only. Setting it up on its outriggers and reading the ground takes someone who does it regularly, so one of our licensed operators runs it for you and their time is already in the rate. You do not need a ticket.
What it is good for
- Reaching over a single or double storey roof from the driveway
- Tree and high access work with a tight footprint
- Atriums, churches and halls where a boom will not fit
How the hire works
Pick your dates in the booking tool, see the price as you go, and send us the request. We confirm it with you on the phone, and nothing is charged online.
Operated hire
One of our licensed operators drives and sets up the machine, so you do not need an EWP ticket of your own. This is also called wet hire.
Delivery to site
We deliver and collect it for one flat return trip fee based on your zone. Tell us about access and ground conditions when you book.
Day and weekly rates
Any hire of five days or more is charged at the weekly rate instead of separate days.
Ruthmann Bluelift SA18HB specifications
- Maximum working height
- 17.8 m
- Outreach at 230 kg
- 7.0 m
- Outreach at 200 kg
- 7.5 m
- Outreach at 120 kg
- 9.3 m
- Basket capacity
- 230 kg
- Basket size
- 1.3 m x 0.7 m x 1.1 m
- Turret rotation
- 340 degrees
- Overall weight
- 2,200 kg
- Travel speed
- 1.5 km/h
- Gradeability
- 28%
- Combustion engine
- Honda iGX
- Electric motor
- 230V, 2.2 kW
- Built to
- EN280
Features
- Hybrid power, petrol outdoors or 230V indoors
- Self stabilising outrigger system
- Automatic centre position of the turret
- Basket rotation, quickly removable basket
- Cable remote control with interactive display
- Moment limiting device
- Proportional electro hydraulic controls
- Driving possible with the jib raised
- Lateral slope alarm with safety stop
- 230V power outlet in the basket
Specifications from the manufacturer: Ahern Australia SA18HB.
Common questions
Why is the spider lift only available with an operator?
It sets up on outriggers and the operator has to read the ground, slope and surroundings before it is raised. We run it ourselves so it is set up properly every time.

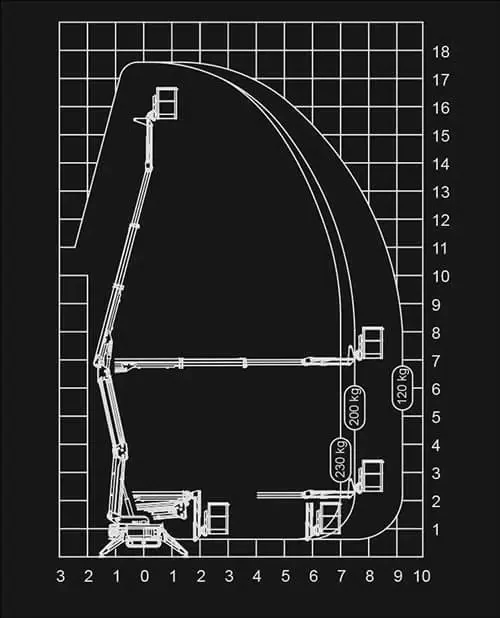

How high and how far can it reach?
Maximum working height is 17.8 metres. Outreach depends on the load in the basket: 9.3 metres at 120 kg, 7.5 metres at 200 kg and 7.0 metres at the 230 kg maximum.
How much room does it need?
It is a tracked machine that sets up on outriggers, and it works from a driveway on many jobs. Overall weight is 2,200 kg, so the ground has to take it. We will go over the site with you when we confirm the booking.
Can it be used indoors?
Yes. It is a hybrid with a 230V electric motor, so it can run on power inside buildings, and a petrol engine for outdoor use.
